  • Building Grade Aluminum Composite Panel
Aluminum Composite Panel(ACP Sheet)

Building Grade Aluminum Composite Panel

ALUMINIUM COMPOSITE PANEL

  • Polyvinylidene Fluoride (PVDF) Aluminum Composite Panel
  • Nano-PVDF aluminum composite panel
  • Polyester(PE) composite panel
  • Grade A2 Fire-Resistant composite panel
  • Grade B1 Fire-Resistant composite panel
  • UV digital printing composite panel
  • Wood grain stone grain composite panel
  • High-performance polyethylene HPPE composite panel
  • Mirror composite panel
  • Semi-spherical aluminum core composite panel
  • Brushed composite panel

PRODUCT INTRODUCTION

Yoobond® Panels are roller coated with 70% Fluorocarbon Knyar 500/Hylar 5000 PVDF resins which are procured from world-renowned paint suppliers such as PPG ®, Beckers ®, Akzo Nobel® & Valspar ®. The rear sides of all Yoobond ® Panels come with a Mill Finish or Polyester Primer coating Yoobond® PE core Panels are made from High-Quality LDPE resins, while the FR panels are made from High-Quality Virgin Resins mixed with Fire retardant chemicals such as Aluminium Tri-Hydroxide and other minerals. The Surface comes with a self-adhesive peel-off protective film and under average outdoor conditions; the protective film should last approximately six months without losing its peel-off characteristics or causing stains.

PRODUCT RANGE

Panel Thickness 4mm 6mm
Cover Sheet Thickness 0.3 0.4 0.5 0.5
Standard Size (W×L) 1220×2440mm 1220×2440mm
1250×2500mm 1250×2500mm
1500×3050mm 1500×3050mm
1500×4050mm 1500×4050mm
MAX Width 2000mm

The above dimensions are standard ex-works.
Individual sizes are available on request.

RAW MATERIAL

Aluminum Alloy 1100, 3003, 5005
Paint Supplier PPG, Becker, Akzo Nobel
Core Material FR Core or non-toxic low-density polyethylene
Surface Coating PVDF, FEVE, Nano-PVDF
Surface Color Solid, Metallic, Brushed, Spectra, Wood & Marble, Embossed

The Above materials are regular on request.
For special requirements please contact with Yoobond Service Team directly.

Coating
PVDF、FEVE、HDPE、PE

Core
HLDPE、A2/B1 Fire Resistant Core

Surface
Solid, Metallic, Brushed, Spectra, Wood/Marble Texture, Embossed, Anodic Oxidation

Panel Thickness  1.5-10mm
Aluminum Sheet Thickness  0.1-0.6mm
Max Width 2000mm
Length On Request

Exterior Wall

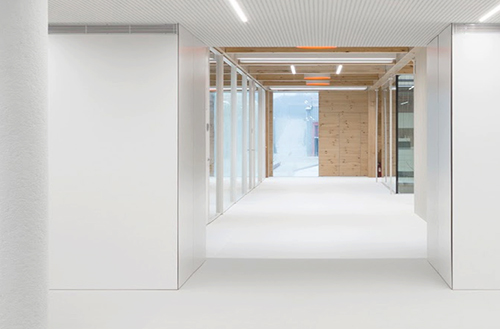

Interior Decoration

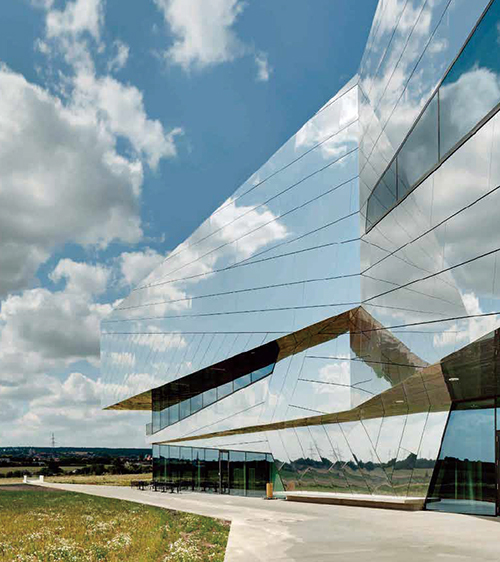

Special Building Surface
Beyond Your Expectation, Within the Budget.

If you have any questions, inquiries, or concerns, our highly skilled and dedicated team of Yoobond professionals is always at your disposal, ready to offer prompt and reliable assistance and support.

Business For 20 Years
Company Profile
Jiangyin Yoobond New Composite Materials Co., Ltd.

Jiangyin Yoobond New Composite Materials Co., Ltd. is a one-step R&D enterprise for new composite materials. It owns the brands YOOBOND® and优沃星®. The main products include Aluminum Composite Panels, Film Laminated Metal Composite Panels, Stainless Steel Composite Panels Galvanized Steel Composite Panel, and New Composite Panel including Aluminum Honeycomb Composite Panels, Aluminum Core Panels, Aluminum Corrugated Composite Panel and etc., the above panels can meet the national standard of B1 grade flame retardant and A2 grade fire resistant.

Our company pursues the purpose of "Than natural" to make our products more environmental. Strictly in accordance with the requirements of the ISO 14001:2004 environmental management system cutting-edge, new-era products, better provide customers with competitive solutions and products, and successfully designed and built dozens of large and medium-sized engineering projects at home and abroad.

  • 0+

    20 years R&D experenice in
    composite materials

  • 0+

    Well sold in more than
    40 countries and regions

  • 0+

    Cooperate with global
    top 500 enterprises

  • 0+

    More than 3000 color/patterns
    are available

Certificate Of Honor
  • EN13501 B1 Grade
  • CE certification
  • Certificate of ISO
  • Certificate of ISO
  • Certificate of ISO
  • B1 level test report
  • ASTM
  • ASTM 2
  • AS1530.3
  • A2 grade metal coated panel
  • A2 FR Core Testing
News
Message Feedback
Aluminum Composite Panel(ACP Sheet) Industry knowledge

Can ACP be used in high-rise buildings?
Aluminum Composite Panels (ACP) can be used in high-rise buildings, but there are important considerations and requirements to ensure safety and compliance:
Advantages of Using ACP in High-Rise Buildings:
Lightweight: ACP panels are lightweight, reducing the overall load on the building structure, which is beneficial for high-rise constructions.
Aesthetic Flexibility: Available in various colors, finishes, and textures, ACP allows for versatile and modern facade designs.
Ease of Installation: ACP can be easily cut, shaped, and installed, making it suitable for the complex designs often required in high-rise buildings.
Durability: Resistant to weather, UV rays, and corrosion, ACP panels are durable and maintain their appearance over time.
Thermal Insulation: Provides a degree of thermal insulation, contributing to energy efficiency in buildings.
Fire Safety Considerations:
Core Material: The core material is crucial for fire safety. Traditional ACP with a polyethylene (PE) core can be highly flammable. High-rise buildings typically require ACP with a fire-resistant (FR) core, often made from mineral-filled materials, which offer better fire resistance.
Regulations and Standards: Building codes and regulations vary by region but generally require ACP used in high-rise buildings to meet stringent fire safety standards. Compliance with standards like EN 13501-1 (European fire classification) or NFPA 285 (U.S. fire testing for exterior walls) is essential.
Certification: Ensure that ACP panels used in high-rise buildings have appropriate certifications and have been tested for fire resistance according to local or international standards.
Installation and Design Considerations:
Proper Installation: Correct installation methods are critical. Gaps, joint treatments, and the installation of fire barriers can significantly affect the fire performance of ACP facades.
Regular Inspections: Regular inspections and maintenance are necessary to ensure the integrity of the cladding system and identify any potential issues.
Case Studies and Incidents:
Past Incidents: There have been incidents where improper use of non-fire-resistant ACP in high-rise buildings led to serious fire hazards (e.g., the Grenfell Tower fire in London). These incidents underscore the importance of using the correct type of Aluminum Composite Panels and adhering to fire safety regulations.
Successful Applications: Conversely, many high-rise buildings successfully use ACP facades with the proper fire-resistant specifications, showcasing its benefits when applied correctly.



How is ACP used in renovation projects?
1. Building Facades and Cladding
Modernization: ACP can give older buildings a fresh, contemporary look with various color and finish options.
Thermal and Weather Protection: Improves thermal insulation and weather resistance, enhancing energy efficiency and protecting the building from environmental elements.
Structural Re-cladding: ACP can replace damaged or outdated cladding materials, extending the building's lifespan and improving safety.
2. Interior Renovations
Wall Panels: Used for creating decorative wall panels that are easy to clean and maintain, providing a sleek and modern appearance for interiors.
Ceiling Panels: Applied to ceilings for aesthetic appeal and to conceal utilities and fixtures.
Partitions: ACP Sheets can create lightweight, durable partitions within office spaces or commercial interiors.
3. Signage and Branding
Commercial Signage: Renovating retail or commercial spaces with new ACP signage can revamp the brand image with vivid, customizable designs.
Facades with Logos: ACP allows for the integration of company logos or custom designs directly into building facades, enhancing brand visibility.
4. Functional Enhancements
Canopies and Awnings: ACP is used to renovate and modernize canopies and awnings, providing a lightweight yet durable solution.
Column Covers: ACP can wrap existing columns, giving them a polished look and protecting them from damage.
5. Energy Efficiency Improvements
Insulation Upgrades: ACP can be combined with insulating materials to improve the thermal efficiency of existing buildings, reducing heating and cooling costs.
Ventilated Facades: ACP Sheets can be part of a ventilated facade system, allowing air circulation that helps in reducing moisture and maintaining indoor air quality.
6. Cost and Time Efficiency
Quick Installation: ACP panels can be rapidly installed over existing structures, minimizing downtime and labor costs.
Reduced Maintenance: The durability and low maintenance requirements of ACP reduce long-term upkeep expenses.
